- Glasgow Airport Investment Area (GAIA): Ancillary Infrastructure
- Sustainability - Built Environment Category
Company Details
Contact Name
Pat Flynn
Address
West Pier Business Campus, Dun Laoghaire, Co Dublin, A96 N6T7, Ireland
Categories/Group
Project Category
- Sustainability - Built Environment Category
Project Group
Environmental Sustainability Built Environment Category
Project Details
Name of the project
Glasgow Airport Investment Area (GAIA): Ancillary Infrastructure
Location
Renfrewshire, Scotland
Client
Wills Bros. Civil Engineering Ltd.
Project Description

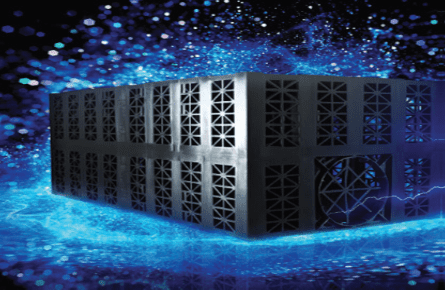

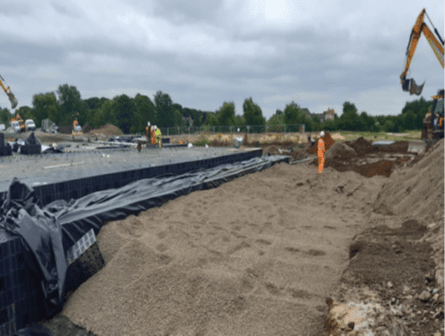

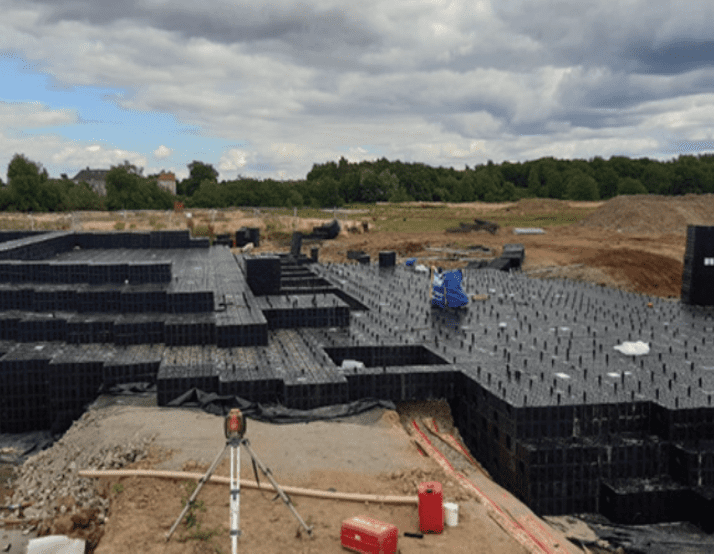

The consultant reviewed an employer design for a road crossing of high tension power cables. The original design called for a piled concrete deck on 30m deep piles with an embodied CO2e of 1,546 tonnes. The consultant provided an innovative alternative using lightweight attenuation crates surrounded with Lightweight Expanded Clay Aggregate. The design was light in weight to resist settlement, water permeable to allow flood waters pass and air permeable to prevent flotation whilst allowing ongoing cooling of buried cables. The design produced an 87% reduction in embodied carbon and was one of nine worldwide projects recognised by the Institute of Civil Engineers at the 2021 ‘Carbon Champions’ awards.
